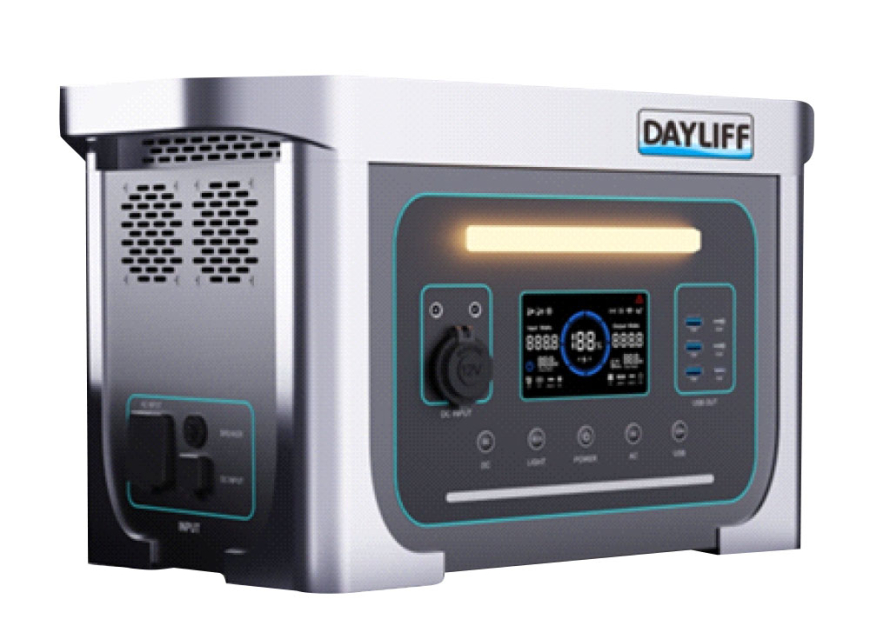

The Dayliff ECO1024 Power Pack is a highly effective hybrid portable power supply solution for off-grid applications or use as domestic mains power backup system with the selectable options of both AC and DC charging and power outputs. Features include:-
- Electrical energy storage in a high-capacity Lithium-Ion battery rechargeable either from mains AC power supply, PV solar modules or a DC car charger.
- Power output from either twin AC output sockets or pure sine wave DC output sockets or USB ports suitable for use with laptop computers and other sensitive DC powered equipment.

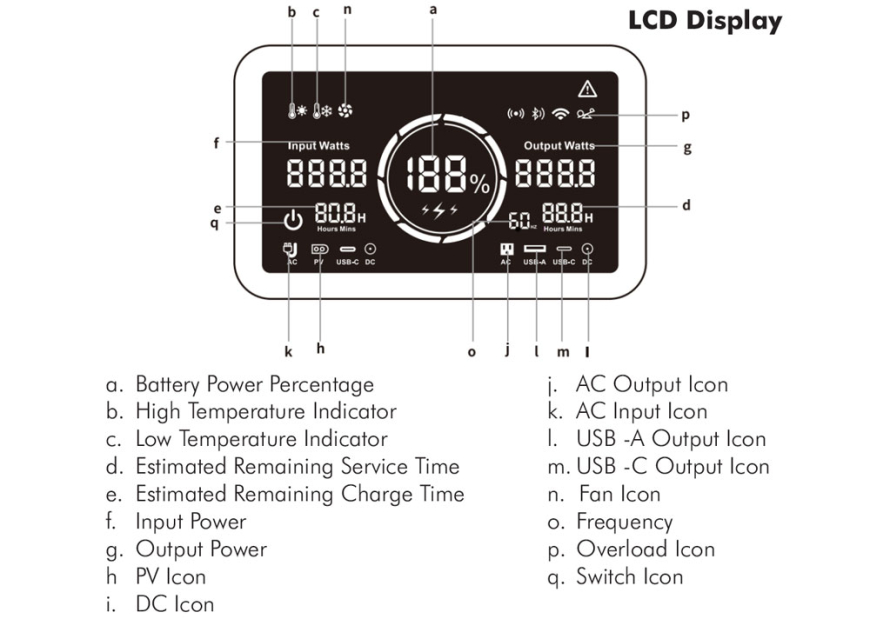

- LCD display presenting various operational data including available battery power charge, input charging rate, output discharge rate and various system indicators and warnings.
- In-built input and output overload protection.
- Supplied complete with all accessories for the various charging options.
The Dayliff ECO 1024 Power Pack is the ideal solution to all recreational and worksite applications and emergency situations where electric power is required. It gives many benefits over the alternative engine power generator including no expensive fuel required, silent in operation, fumeless and maintenance free. It provides output power on demand without system losses and is a highly cost-effective power supply solution.
DAYLIFF ECO 1024 Power Pack |
Model ECO 1024 |
Nominal Battery Voltage |
24VDC |
Inverter Output |
|
Nominal Output Rated Power |
1000W |
Output Voltage Waveform |
Pure Sive Wave |
Output Voltage Regulation |
230V+/-5% |
Output Frequency |
50Hz(+/-0.2Hz) |
Peak Efficiency |
2000W (max) |
Standby Consumption |
240V < 25W |
PV Input |
|
Max Solar Power Input |
600W (2x280W PV Modules) |
PV Max Charging Current |
25A |
Max Efficiency |
95% |
PV Array Open Circuit Voltage |
80V (max) |
PV Array MPPT Voltage Range |
12-72V |
AC Input |
|
AC Input Voltage |
240VAC |
Nominal Input Frequency |
50Hz |
Transfer Time |
< 15ms |
Charging Current @Nominal Input Voltage |
600W @ 240VAC |
Charging Algorithm |
Equalize - Trickle charge |
Output |
|
AC Output |
240VAC (2No. Sockets) |
Car Charger Output (Cigarette lighter) |
120W |
DC Output (DC5521) |
60W x 2 |
USB-C (Type-C) |
PD18Wx1 + PD60Wx2 |
LED (white light) |
2W |
Lithium Battery |
|
Energy |
1075Whrs |
Nominal Voltage |
25.6V |
Battery Capacity |
42Ah |
Protection Board |
100A |
Standard Charging & Discharge Current |
|
Operation Temperature |
Charge 0°C to 45° |
Discharge - 10°C to 60°C |
Specifications |
|
Dimensions (WxHxD) |
440.0x233.2x263.3mm |
Packaging Dimensions (WxHxD) |
504.0x314.5x345.0mm |
Gross Weight |
17.9kg |
