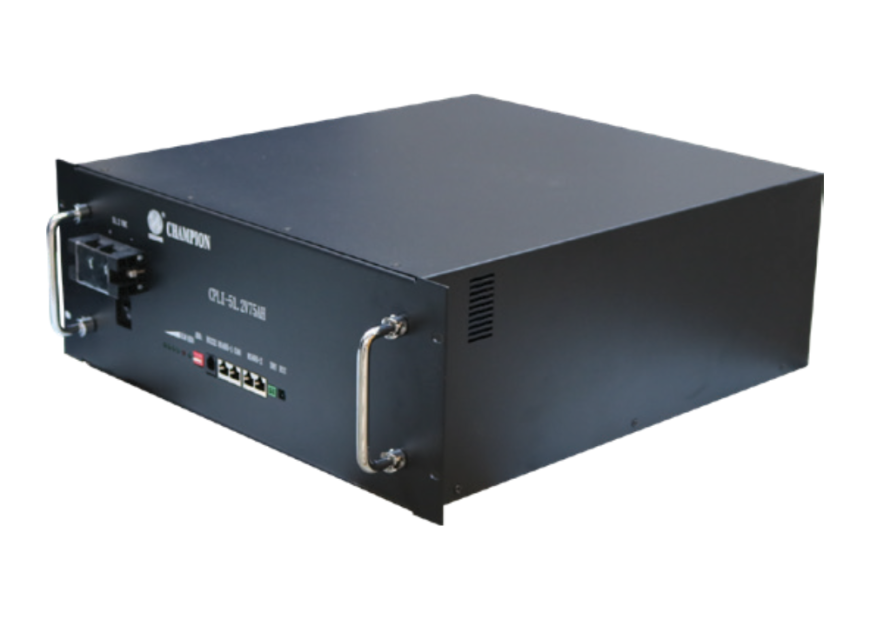

Champion Lithium Batteries



Lithium Iron Phosphate (LiFePO4) batteries with BMS control system are high-performance alternatives to the conventional Lead Acid VRLA type with principal applications for solar power system storage and mains power supply backup. They offer considerable benefits including enhanced power output, considerably extended life and cooler operation in high temperatures and are especially suited to high specification installations. Particular benefits include:-

  • 100% depth of discharge with a design life of up to 8000 cycles.

  • Constant discharge voltage that enables the battery to deliver nearly full power until it is fully discharged. This also greatly simplifies voltage regulation control.

  • Lighter weight but higher energy density to similar capacity Lead Acid alternatives.

  • Low self-discharge rate of 3% per month.

  • Built in battery charge/discharge protection.

  • Excellent resistance to over and under charge with no damaging effects.

  • Maintenance free, totally safe and environmentally friendly.

  • Batteries should only be connected in parallel. Series connection will result in battery damage.

In every aspect of performance Lithium Iron Phosphate batteries offer a much superior solution over the Lead Acid alternatives and though of higher capital cost deliver the more economical long term outcome due to their greatly increased life, consistent power output and better charge/discharge performance. For high specification systems where enhanced performance is demanded and reliability is essential they are the optical choice.

TECHNICAL DATA

Models Ratings Max. Charge Current(A) Max. Discharge Current (A) Dimensions (mm) Weight (kg)
Length Width Height
CPLI-4875 48VDC 75AH 75 75 482 570 132 38
