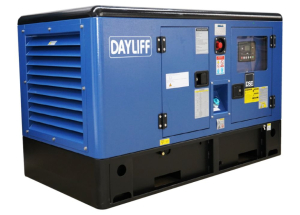

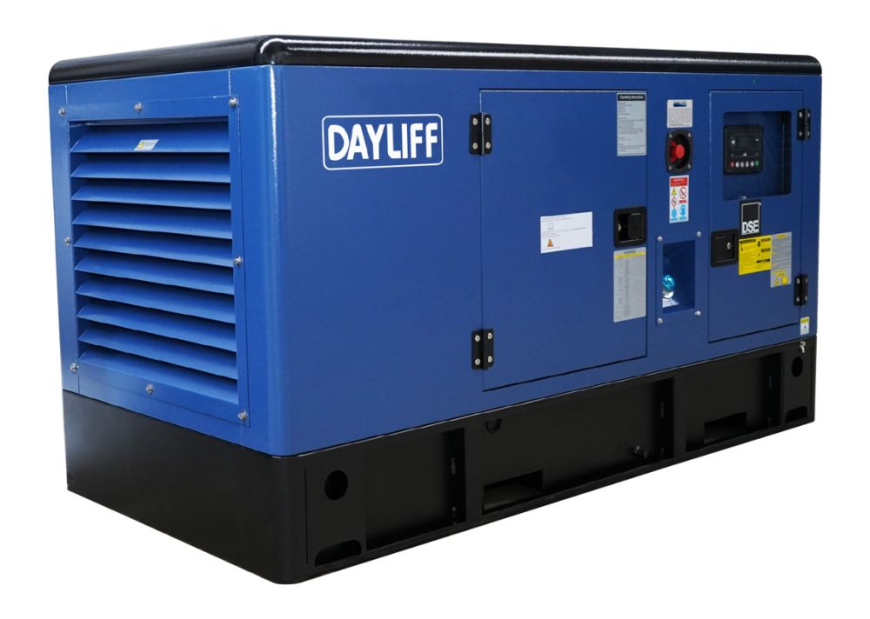

DGY Generators



Dayliff DGY Yanan generators are robust, high-quality units designed for continuous duty in a wide range of power supply applications. All sets offer the following features:-
  • Powered by dependable and efficient Dayliff Y series water-cooled diesel engines with 24V Starter system for all units 30kVA and above.
  • Close-coupled at 1500rpm to a brushless single bearing alternator with solid-state AVR regulation.
  • Base frame mounted on anti-vibration mounts and including a high capacity base mounted fuel tank for extended operation time.
  • Powder-coated sound and weatherproof canopies with residential silencer for extremely low noise operation.
  • Integral DSE digital control module that provides selectable readout of electrical voltage, phase current, output frequency, and battery voltage and engine speed, hours run, oil pressure and coolant temperature.
  • Automatic shut down protection in the event of low engine oil pressure, high engine temperature and over and under speed with warning indicators provided for each condition.
  • Digital automatic mains failure provision for starting the generator. An additional automatic transfer switch is also required for mains/generator power transfer.
Dayliff DGY Yanan diesel generators are reliable economical and high specification products that are the ideal solution for all continuous duty and standby power generating requirements.

TECHNICAL DATA

GENERATOR MODEL DGY 12YM DGY 12Y DGY 16Y DGY 24Y DGY 36Y DGY 48Y
Prime/Standby Power Output kVA 12/13 15/17 20/22 30/33 45/50 60/66
kW 12/13 16/18 24/26 36/40 48/53
Engine Data Type YND 485D YSD 490D Y4102D Y41027LD YD4EZLD
Rated Power @ 1500rpm (kW) 17 20 33 48 63
Max Power @ 1500rpm (kW) 18.7 22 36.3 52.8 69.3
Aspiration Naturally Aspirated Turbo Aftercooled
No. of Cylinders 4
Displacement (L) 2.2 2.5 3.9 4
Fuel Consumption (litres/hr) 75% load 3.8 4.7 6.9 9.7 12.4
100% load 5 6.2 9.2 12.9 16.5
Fuel Tank Size (Litres) 100 130
Alternator Data Alternator Type Self excited 4 pole (1500rpm) single bearing brushless
Output Voltage 1x240V 3x415V
Voltage regulation Solid State AVR ± 1.0% with 4% Engine Governing
Insulation Class H
Protection  Rating IP21
Dimensions & Weights Length, A (mm) 1800 1900 2300
Width B,  (mm) 1000 1100
Height C,  (mm) 1180 1200 1240 1250
Dry Weight (kg) 770 810 870 1070 1210 1260

DERATING: Given outputs are sea level ratings. Sets should be derated at 1% for every 100m higher than 100m above sea level, and 2% for every 5°C temperature above 20°C for naturally aspirated engines.
