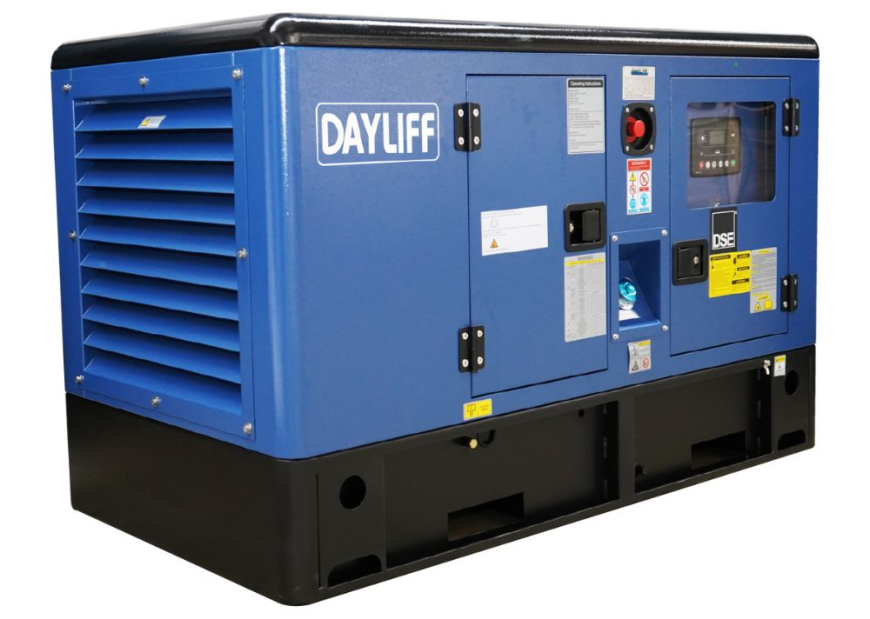

DGC Generators



Dayliff DGC Cummins generators are robust, high quality units designed for continuous duty in a wide range of power supply applications. All sets offer the following features:-

  • Powered by dependable and efficient Cummins water cooled diesel engines according to model.
  • Close coupled at 1500rpm to a brushless single bearing alternator with solid state AVR regulation.
  • Base frame mounted on anti-vibration mounts and including a high capacity base mounted fuel tank for extended operation time.
  • Powder coated sound and weather proof canopies with residential silencer for extremely low noise operation.
  • Integral DSE digital control module that provides selectable readout of electrical voltage, phase current, output frequency and battery voltage and engine speed, hours run, oil pressure and coolant temperature.
  • Automatic shut down protection in the event of low engine oil pressure, high engine temperature and over and under speed with warning indicators provided for each condition.
  • Digital automatic mains failure provision for starting the generator. An additional automatic transfer switch is also required for mains/generator power transfer.

Dayliff DGC diesel generators are reliable economical and high specification products that are the ideal solution for all continuous duty and standby power generating requirements.

Technical Data

Generator Model DGC 45C DGC 64C DGC 80C DGC 104C DGC 144C DGC 200C DGC 250C DGC 280C DGC 320C DGC 360C DGC 400C DGC 460C DGC 600C DGC 640C DGC 800C
Prime/Standby Power Output kVA 56/63 80/88 100/110 130/143 180/200 250/275 313/350 350/375 400/438 450/500 500/550 575/650 750/825 800/888 1000/1100
kW 45/50 64/70 80/88 104/114 144/158 200/220 250/280 280/300 320/350 360/400 400/440 460/520 600/660 640/710 800/880
Engine Data Type Cummins 4BTA3.9-G2 Cummins 4BTA3.9-G11 Cummins 6BT5.9-G2 Cummins 6BTAA5.9-G2 Cummins 6CTA8.3-G2 Cummins NT855-GA Cummins NTA855-G1B Cummins NTA855-G2A Cummins QSNT-G3 Cummins KTA19-G3 Cummins KTAA19-G6 Cummins KTA19-G3 Cummins KTA38-G2 Cummins KTA38-G2B Cummins KTA38-G5
Rated Power @ 1500rpm (kW) 55 70 86 120 180 231 284 310 392 403 448 520 664 711 881
Max Power @ 1500rpm (kW) 50 80 92 130 163 254 321 313 358 448 504 570 731 790 970
Aspiration Turbo Charged & Aftercooled
No. of cylinders 4 6 12
Displacement (L) 3.6 5.6 8.3 14
Fuel Consumptions (litres/hr) 75% load 10 13.2 17 23 30 41.3 54.3 54.9 62.3 97 107 131.5 167 209
100% load 12.9 17.6 22 30 40 53.4 71.4 71.9 83.9 107 121 143.5 183 184 228
Fuel Tank Size (litres) 130 280 330 770 1212 1300 1000 Use external Fuel tank
Alternator Data Alternator Type Self excited 4 pole (1500rpm) single bearing, brushless
Output Voltage 3x415V
Voltage Regulation Solid state AVR±1.0% with 4% engine governing
Insulation Class H
Protection Rating IP21
Dimensions & Weights Length, A (mm) 2300 2800 4200 4800 5800
Width, B (mm) 1100 1500 1700 1900 2150
Height, C (mm) 1290 1470 1800 2100 2140 2340 2430 2540
Dry weight (kg) 1320 1400 1600 1700 4050 4250 4300 4380 5500 5600 6020 10350 10650



Derated : Given outputs are sea level rating.Sets should be derated at 1% for every 100ma bove sea level, and 2% for every 5°C temperature above 20°C. Refer to manufacturer's table for accurate ratings.
