DWY

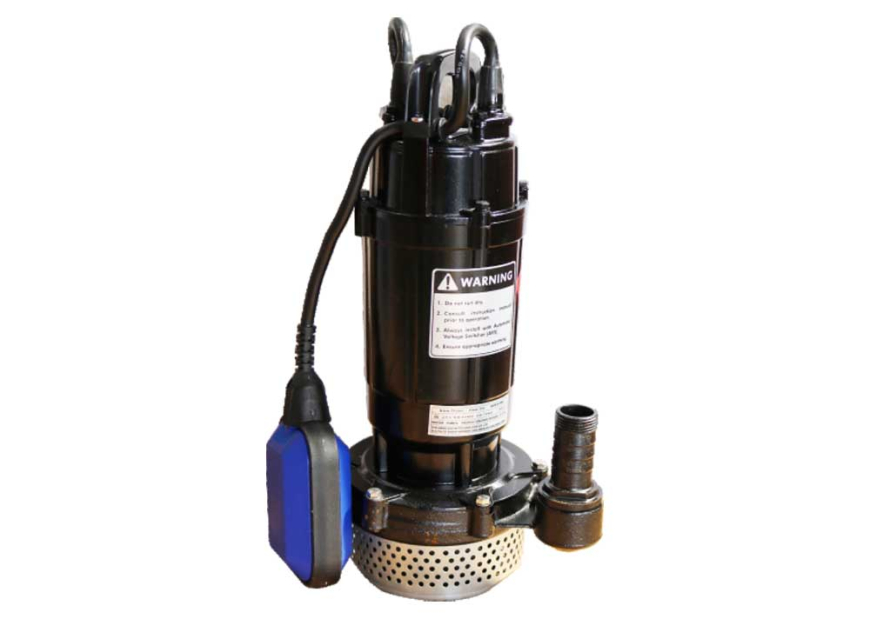

The Dayliff DWY range of portable submersible pumps are designed for well pumping and drainage of clean water containing minimal impurities for domestic and small scale water supply applications. They are of closed impeller type, all major components being manufactured from cast aluminium. All models are supplied with 8m of cable and level switch for automatic operation

MOTOR
Pumps are supplied with two pole single phase squirrel cage motors with integral thermal overload protection and can be directly connected to the mains through a 10A fuse or MCB (13A for 1.5kW motor)
Enclosure Class:IP68
Insulation Class:F
Voltage:1x240
Speed:2850rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids
Max. Fluid Temperature: +40°C
Max. Ambient Temperature: +40°C
Min Immersion Depth:10m
Max. Particle Size: <1.1kW, 3.3mm, >1.5kW, 5.5mm

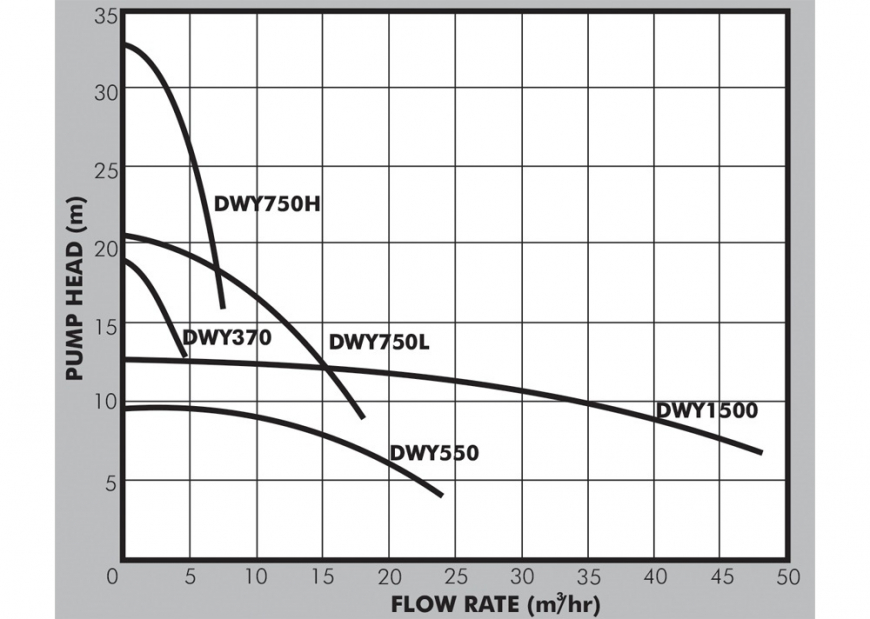

PUMP DATA

Model Power Current(A) Dimensions(mm) DN("") Weight(kg)
kW HP W H
DWY370 0.37 0.5 2.8 195 340 1 7
DWY550 0.55 0.75 4.2 235 380 2 10
DWY750L 0.75 1 6.1 230 390 1.5 11
DWY750H 6.3 235 390 1 11
DWY1500 1.5 2 9.1 270 465 3 20
