DSS5

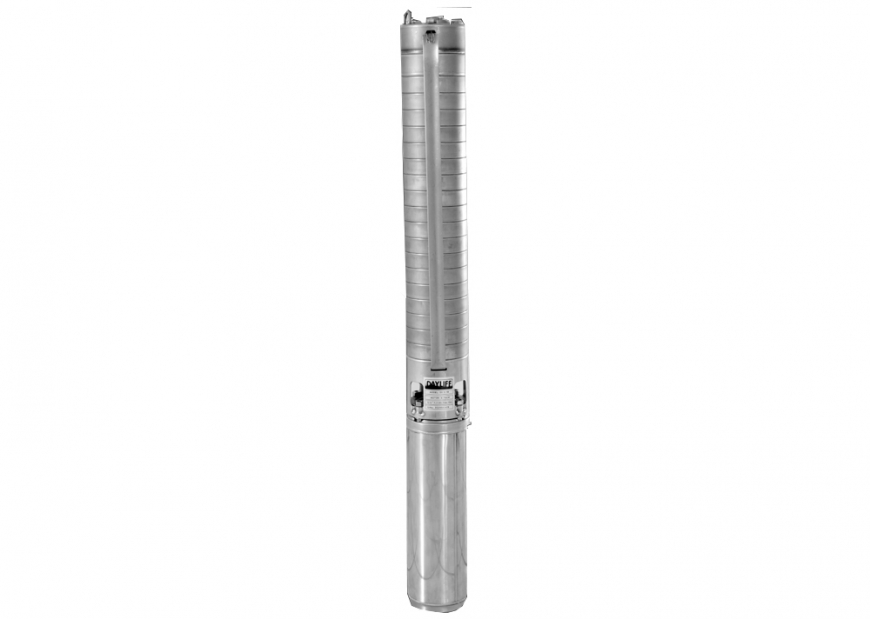

DAYLIFF DSS submersible pumps are designed specifically for borehole supply applications. They are of multistage centrifugal impeller design and all parts are made from stainless steel with water lubricated rubber bearings. A submersible motor is fitted beneath the pump and suction is effected through a strainer between the pump and motor.

MOTOR
The pump is coupled to a sealed liquid cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single phase motors should be supplied with purpose designed Dayliff SCM control boxes for operation and protection against overload, dry running and over/under voltage. Three phase motors require a remote DOL starter; A DAYLIFF SCT electronic Pump Controller is recommended for comprehensive pump control including low level, motor overload and irregular power supply protection.

Enclosure Class: IP68
Insulation Class: F
Speed: 2900 rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids with a maximum sand content of 0.25%
Max Liquid Temperature: +50ºC
Max Water Depth:200m
Minimum Borehole Diameter: 110mm

ELECTRICAL DATA & DIMENSIONS

Model Motor Full Load Current (A) Start Current (A) Dimensions (mm) C Weight (kg)
A B
 kW  HP  1x240V  3x415V  1x240V  3x415V  1x240V  3x415V  1x240V  3x415V
DSS 5/8 0.75 1 6.2 - 25 - 359 - 706 - 347 12
DSS 5/12 1.1 1.5 8 - 32 - 399 - 842 - 443 15
DSS 5/17 1.5 2 11.5 - 46 - 449 - 1012 - 563 18
DSS 5/25 2.2 3 15.5 6 62 42 542 514 1297 1296 755 25
DSS 5/33 3 4 - 8 - 56 - 594 - 1541 947 29
DSS 5/44 4 5.5 - 10 - 70 - 698 - 1906 1208 35
DSS 5/58 5.5 7.5 - 13 - 91 - 788 - 2326 1538 43
