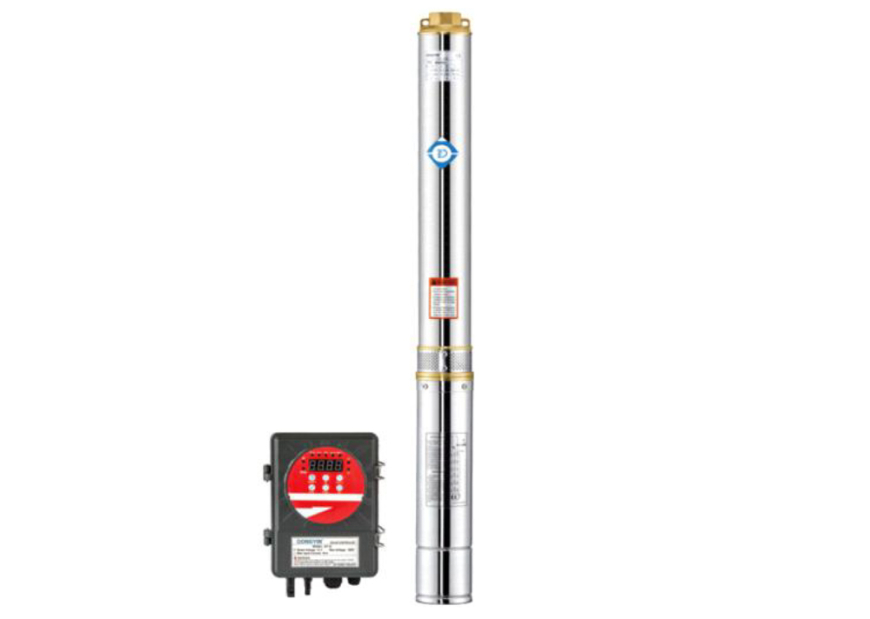

DAYLIFF SUNFLO-B2 pumps are specifically designed for PV solar powered water supply from wells and boreholes. They are of centrifugal design and material of construction incude polycarbonate impellers and diffusers, cast iron delivery and suction chambers and AISI 304 stainless steel pump housing, shaft and shaft coupling. Pumps are supplied complete with an MPPT controller.
MOTOR
Permanent magnet, oil filled, brushless, DC motor specifically designed for maximum efficiency from solar module power sources. It should be powered by a solar array configured to provide the input voltage required and sized at approximately 130% of the rated motor power
Enclosure Class: IP68
Insulation Class: F
Speed:3000rpm
CONTROLLER
The pump is supplied with a seperate multifunction MPPT (Maximum Power Point Tracking) controller that tracks the solar module's maximum power output voltage which varies with module temperature and irradiation levels. This ensures maximum current output, typically +25% higher than conventional module controllers and a similar increase in daily water output. The controller also protects from over and under voltage, over current and low water level and features various indicator lights that give the pump’s operating status. The system can be installed either with or without batteries. If batteries are included, the pump will operate when there is insufficient solar irradiation for direct power.
PUMP OUTPUTS

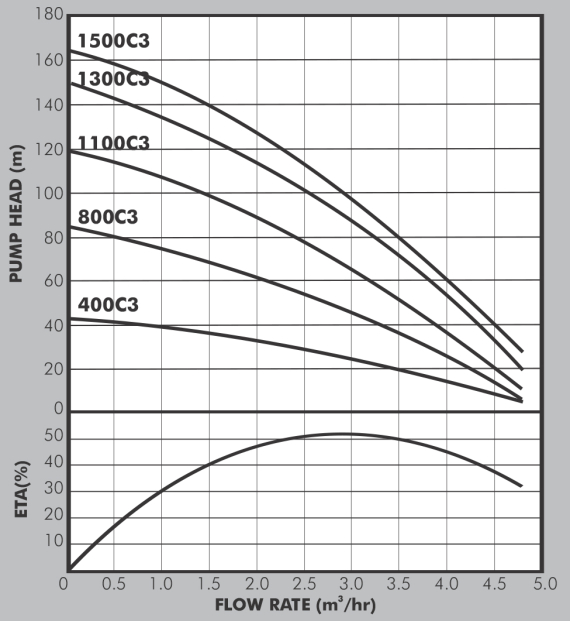

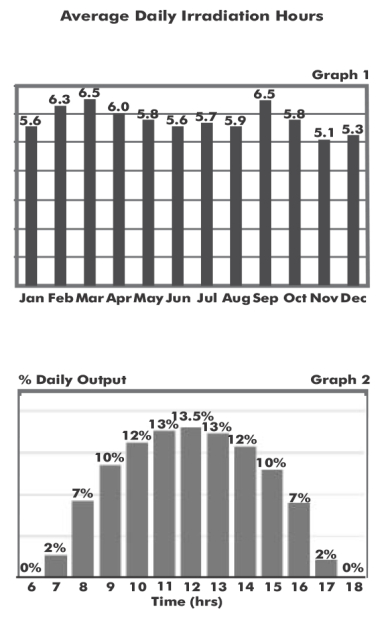

Pump output curve is given at standard test conditions of 1000W/m solar irradiance and 250C. Output will vary throughout the year depending upon prevailing irradiation levels. For estimated daily outputs at continuous pumping, multiply the indicated output at the duty point by the daily radiation given in Graph 1. For indicative purposes, factors of 1.1 can be applied for hot arid areas and 0.9 for temperate high-altitude areas in the Tropics. Output will vary throughout the day as a proportion of the estimated hourly irradiation as shown in Graph 2.
OPERATING PARAMETERS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids with a maximum particle size of 2.3mm
Max. Liquid Temperature: +35°C
Max Immersion Depth: 100m
Model |
Type |
Motor Rating (V) |
Input Voltage (V) |
Peak Voltage (V) |
Open Circuit Voltage (VOC) |
PV Modules (W) |
DN (”) |
Dimensions (mm) |
Weight (kg) |
M |
P |
SUNFLO-B2 400C3 |
Centrifugal |
400 |
48 |
≥60 |
<100 |
2x280W connected in Series |
1¼ |
251 |
298 |
15 |
SUNFLO-B2 800C3 |
800 |
48 |
≥60 |
<100 |
4x280W (2 No. Series, 2No. Parallel Strings) |
347 |
16 |
SUNFLO-B2 1300C3 |
1300 |
110 |
≥110 |
<200 |
8x280W (4 No. Series, 2No. Parallel Strings) |
469 |
19 |
