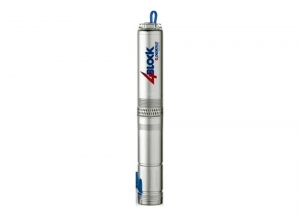

Pedrollo 3SR/4 submersible pumps are specifically designed for domestic and small scale water supply from boreholes, though can also be used in other submersible applications in either vertical or horizontal configuration. They feature a hydraulic design that incorporates floating impellers which together with especially resistant component materials provide high resistance to sand content in the pumped water. The pump impellers and diffusers are made from technopolymer while the stage casings, top housing, suction connector, pump sleeve and shaft are made of AISI 304 stainless steel. The pump is supplied with a 1.5m tail cable.
MOTOR
Pumps are coupled to a two pole sealed oil filled motor constructed principally from AISI 304 stainless steel. A separate control box is also recommended for single phase pumps which incorporates a fused rotary switch, run indicator light, thermal overload with manual reset and capacitor which can be connected directly to the mains power supply.
Enclosure Class : IP68
Insulation Class: F
Speed: 2900rpm
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non aggressive liquids with a maximum sand content of 150gm/m³.
Max. Liquid Temperature:+30°C.
Min. Borehole Diameter:110mm
Max. Immersion Depth:200m
PUMP DATA
Model |
Motor |
Current (A) |
DN(") |
Dimensions (mm) |
Weight (kg) |
kW |
HP |
1X240V |
3x415V |
Ø |
H1 |
H2 |
|
3SR2/21 |
0.55 |
0.75 |
5 |
|
1 |
76 |
672 |
393 |
11 |
3SR2/28 |
0.75 |
1 |
6 |
|
830 |
433 |
13 |
3SR2/41 |
1.1 |
1.5 |
8 |
|
1167 |
477 |
16 |
3SR4/23 |
|
4 |
915 |
438 |
13 |
