DSD 8

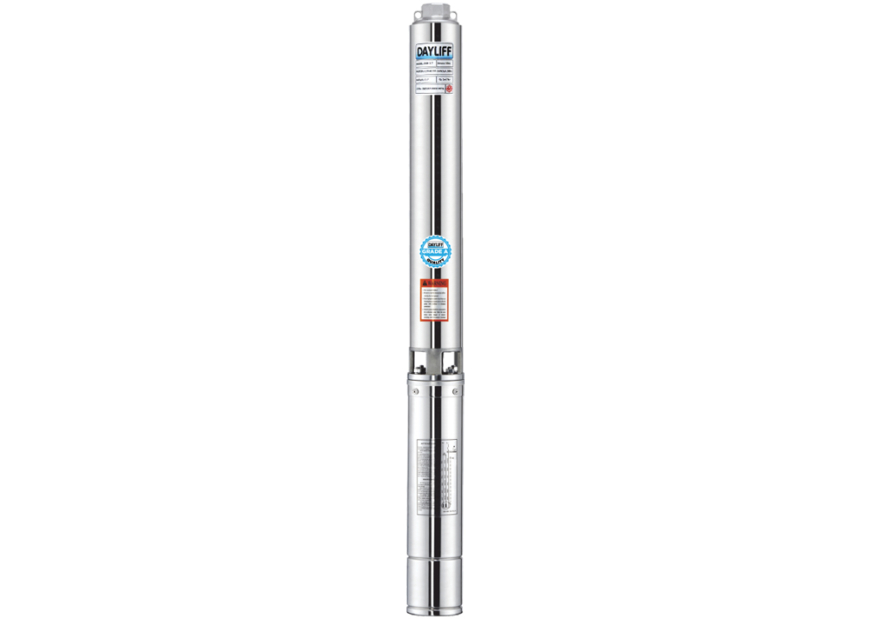

DAYLIFF DSD range of submersible multistage centrifugal pumps are specially designed for water supply from wells and boreholes. Material of construction include polycarbonate impellers and diffusers, AISI 201 stainless steel delivery and suction chambers and AISI 304 stainless steel pump housing, shaft and shaft coupling. These corrosion resistant materials together with the advanced hydraulic design provide the pumps with excellent sand handling capabilities for a longer life and operational efficiency. DSD8/12 is supplied complete with 30m cable and a control box.

Motor

The pump is coupled to a sealed liquid cooled 2-pole asynchronous squirrel-cage motor constructed of stainless steel. Single phase motors should be supplied with purpose designed Dayliff SCM control boxes for operation and protection against overload, dry running and over/under voltage. Three phase motors require a remote DOL starter; A DAYLIFF SCT electronic Pump Controller is recommended for comprehensive pump control including low level, motor overload and irregular power supply protection.

Enclosure Class: IP68
Insulation Class: B
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids with a max. particle size of 2.3mm
Max. Water temperature: +35°C
Max. immersion depth: 150m
Min. borehole diameter: 110m

Pump Data

Model  Motor Voltage (V) Current (A)  Istart / I DN (") Dimensions(mm) Weight (kg)
kW HP A D
8/12 1.5 2.0 1x240 11 4   2 716 1101 18
8/17 2.2 3.0 16 876 1390 23
3x415 6 7 1350 21
8/23 3 4.0 8 1093 1647 28
8/30 4 5 11 1380 2009 33
8/36 5.5 7.5 14 1630 2349 40
8/42 7.5 10 15 1847 2686 48
