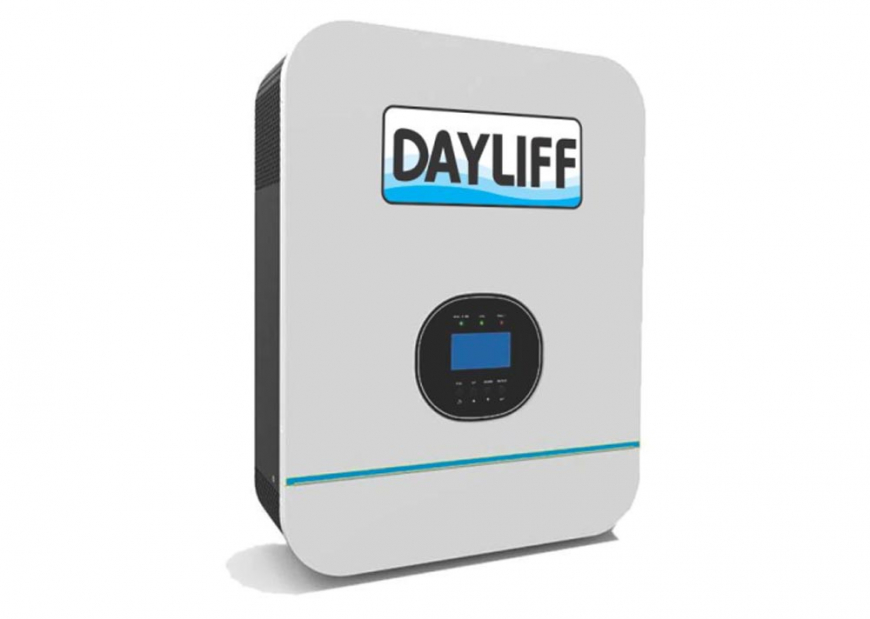

Growatt Multifunction Inverters



The Dayliff Growatt inverter range are versatile high specification multifunction inverters designed for various applications including:-

  • Grid-Tie combining mains AC and PV module DC input power sources programmable to prioritize PV supply with mains power used to supplement load requirements.
  • Off-Grid for stand-alone PV solar-powered systems to provide AC power for various load requirements with battery backup for non PV availability.
  • Power backup systems for on-grid mains failure battery feed loads.

The Dayliff Growatt inverters include the following features:-

  • Pure sine wave output that provides filtered power for use with sensitive electronic devices.
  • LCD display for operating parameters and user-configurable settings including battery charging current, AC/Solar output priority, and input voltages.
  • Built-in smart charge controllers with automatic switching between AC and Solar power sources for optimized battery performance.
  • Built-in MPPT charge controller
  • Overload and short-circuit protection.
  • Programmable supply prioritization for PV, battery, or grid supply
  • Optional WIFI/GPRS for Monitoring software for real-time status display and control
  • Parallel operation for scalability available on 5000W model only
  • Compatible with lead-acid and lithium battery

Specifications

Model
GD2000TL GD3000TL GD5000TL
Rated Power (VA/W) 2000VA/2000W 3000VA/3000W 5000VA/5000W
Input AC Voltage (VAC) 240
Max PV Input Power (W) 1500  4500
Max. PV Array Open Circuit Voltage 102 145
PV Array MPPT Voltage Range (VDC) 30 - 80  60 - 115
Nominal Output Voltage (VAC) 240VAC ± 5%
Maximum Solar Charging Current (A) 50 80
Maximum AC Charging Current (A) 30 60
Nominal Battery Voltage (VDC) 24 48
Peak Efficiency (%) 98%
Parallel Capability None Yes, 6 units
Dimensions (DxWxH) mm 130x315x400 143x420x531
Net Weight (kg) 9 10 16
