Solar PV Accessories

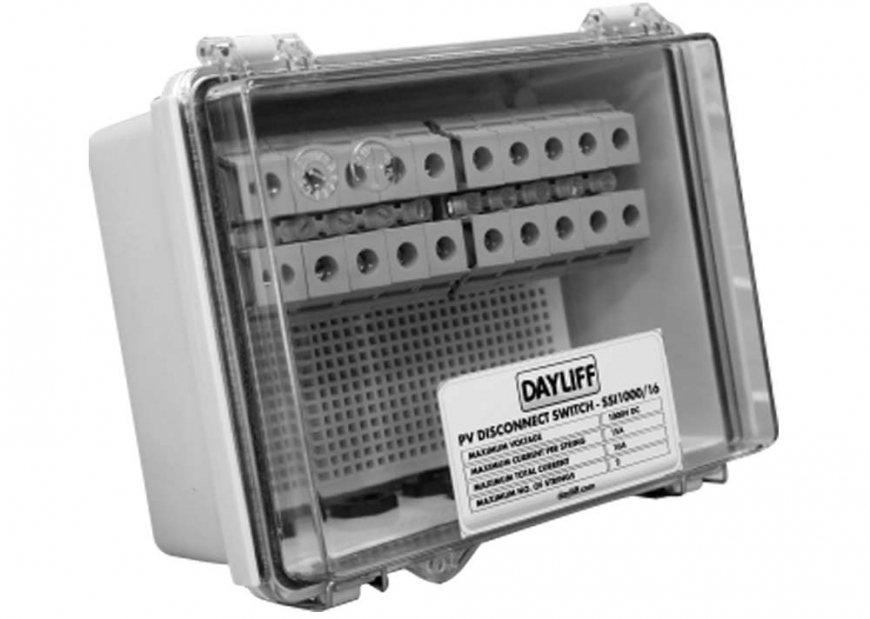

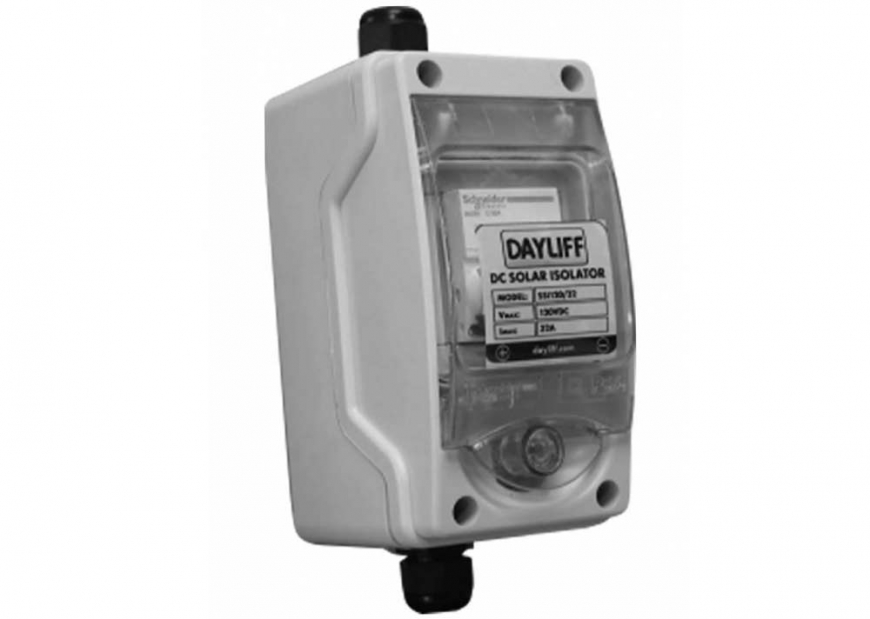

Specially designed for isolation of PV array strings from controllers or inverters in Photovoltaic (PV) applications during operation and maintenance. They feature fast-acting DC Circuit Breakers that protect installation against over currents and short-circuits on the DC side. When installed on each string of a multi-string PV array, they also protect against reverse currents in the event of shading or faults.

TECHNICAL DATA

Model Rated Current (A) Max No. of Strings Rated Voltage (VDC) Weight(kg)
PVDISC500/16A 16  1 500 2.5
PVDISC1000/16A 2 1000 2.6
PVDISC1000/40A 40 4 2.7
